PEC Industrial Floor Scale,Accurate Digital Pallet Scales with Indicator for Warehouse or Shipping Weighing,24”X24“/2500 X 0.5Lb…
PEC Industrial Floor Scale,Accurate Digital Pallet Scales with Indicator for Warehouse or Shipping Weighing,24”X24“/2500 X 0.5Lb…
Regular price
$604.02 USD
Regular price
$0.00 USD
Sale price
$604.02 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product description
A variety of sizes are available

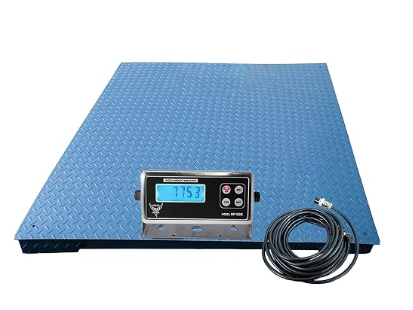

PEC-IN202 Indicator
- PEC-IN202 Indicator with serial output
- Easy operation and clear LED display with back light
- NTEP CC#: 12-112
- Units: lb/kg/oz
- Display modes for NET or GROSS weight
- PEC-IN202 is a popular indicator for floor scales, small truck scales and hoppers, etc.

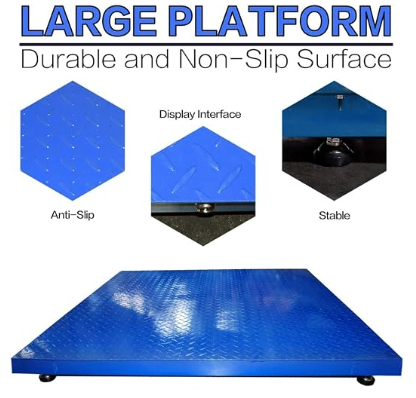

Heavy-duty design
More accurate and stable weighing
Blue paint surface coated by high temperature processing. Paint is durable and will not peel. Anticorrosive and is much more moisture resistant compared to ordinary spray paint processing
- We have sizes: 24"x24", 36"x36", 48"x48", 48"x60", 48"x72", 60"x60"
- Four alloy steel shear beam load cells make the scale durable, protected against dust, splash water or immersion.
- Four high quality alloy load cells that ensure the unit is accurate within the full range of its capacity.
Installation
Step 1
In order to avoid damages to the sensor during delivery, load cells will be taken off when shipped.
Step 2
When you receives the product, simply screw on the pounds.
Step 3
Unscrew the cover plate of the junction box, remove the cover plate, and pull out the sensor connection serial port.
Step 4
The weight sensor wiring serial port is inserted into the sensor signal input port on the back of the display instrument to complete the installation before weighing.
